Cable Trunking (Solid Duct with Cover) (CTM-TK) is a cable trunking from Cable Tray Master. Key specs: 50–300 width range (mm), 50–150 height (mm), Cover removable for access.
Cable Trunking · Factory-Direct
The closed duct for protected, tidy runs
A solid steel duct with a removable cover that shields cables from dust, moisture and damage and gives exposed runs a clean, finished look. Widths 50 to 300 mm, made in our own plant.
- Closed body protects against dust and damage
- Removable cover for quick cable access
- Made in our own factory, pre-galv / HDG / powder
We reply within one business day with spec, price and lead time.
Why Cable Tray Master
A manufacturer you can buy direct from, and audit
Cable Tray Master is a cable tray manufacturer and exporter under one owner. We make the tray on our own line in China and ship it with our own export team, so the price is factory-direct, the specification is made to order, and buyers are welcome to visit and audit the plant.
Full mechanical protection
The solid steel body encloses cables completely, shielding them from dust, moisture and impacts in exposed, dusty or damp areas where an open tray would leave them vulnerable.
Easy access when you need it
The cover lifts off along the whole length, so cables are laid straight in rather than pulled through, and can be added or changed later without disturbing the run.
Clean finished appearance
A neat, enclosed duct for exposed wall runs, risers and switchrooms, powder-coated to a project colour where the look matters.
What the CTM-TK is, and who it is for
Cable trunking is the closed member of the family: a solid steel duct with a removable cover that fully encloses the cables inside. Where a perforated or mesh tray leaves cabling open, trunking shuts it away, protecting it from dust, moisture and knocks, and giving exposed runs a clean, finished appearance. That makes it the right choice for plant rooms, electrical risers, switchrooms and any wall-mounted run where cabling is on show or needs mechanical protection.
The cover is what makes trunking practical. It lifts off, by snap-fit or a few bolts, so an installer can lay cables in along the whole length rather than pulling them through, and can come back later to add or change a cable without disturbing the run. When the cover is back on, the cabling is protected and out of sight.
We make trunking in our own factory, in widths from 50 to 300 mm and pre-galvanized, hot-dip galvanized or powder-coated finishes, so it matches the environment and, where wanted, a project colour scheme. It ships with the bends, tees, end caps and covers to complete a tidy, protected route.
Specifications
Technical specifications
Confirmed per order. We send the full spec sheet, including sizes, thickness and finish, before you buy.
| Type | Cable trunking (solid duct + cover) |
|---|---|
| Profile | Solid-body duct with removable cover |
| Width | 50 – 300 mm |
| Height | 50 – 150 mm |
| Sheet Thickness | 1.0 – 2.0 mm (confirmed per order) |
| Standard Length | 2 m / 3 m (confirmed per order) |
| Cover | Removable snap-on / bolt-on cover |
| Material | Pre-galvanized / cold-rolled steel |
| Surface Finish | Pre-galvanized / HDG / powder-coated |
| Certification | Available on request |
| Origin | Made in China (our own factory) |
| MOQ | Confirm on inquiry |
Width, height, thickness, cover type, finish and any certification are confirmed per order before production. We do not print figures we cannot back up.
Built to do the job on site
Closed, protected body
The solid steel duct shields cables from dust, moisture and mechanical damage in exposed and dirty areas.
Removable cover
The cover lifts off so cables are laid in along the length and changed later without pulling the whole run.
Clean finished look
A neat, enclosed appearance for exposed wall runs, risers and switchrooms where cabling is on show.
Finish for the setting
Pre-galvanized, hot-dip galvanized or powder-coated in a project colour on request.
Matched fittings
Bends, tees, end caps and covers supplied to complete a tidy, protected route.
Made in our own plant
Width, height, thickness and finish produced to your spec, packed for export.
How it works
When to enclose the cables
Open trays are ideal where cooling and access matter, but there are runs where the cabling needs to be shut away: exposed wall runs in a workshop where it could be knocked, dusty or damp plant rooms, switchrooms where a clean look matters, or any place a solid duct is specified for mechanical protection. Trunking answers all of these. The solid body keeps dust, moisture and impacts out, and the run looks finished rather than exposed.
Why the removable cover matters
A trunking cover is not just a lid. Because it lifts off along the whole length, cables are laid straight into the base instead of being pulled through a conduit, which is far faster on a long run and much easier when the cables are large. Later, when a cable is added or replaced, the cover comes off again for access and clips back on. That combination of full protection and easy access is what sets trunking apart from a sealed conduit.
Where it fits on the job
Enclosed, protected routing
The solid steel body shuts cables away from dust, moisture and knocks on exposed wall runs, risers and switchrooms, while the removable cover lifts off for access.
Bends, tees and covers to match

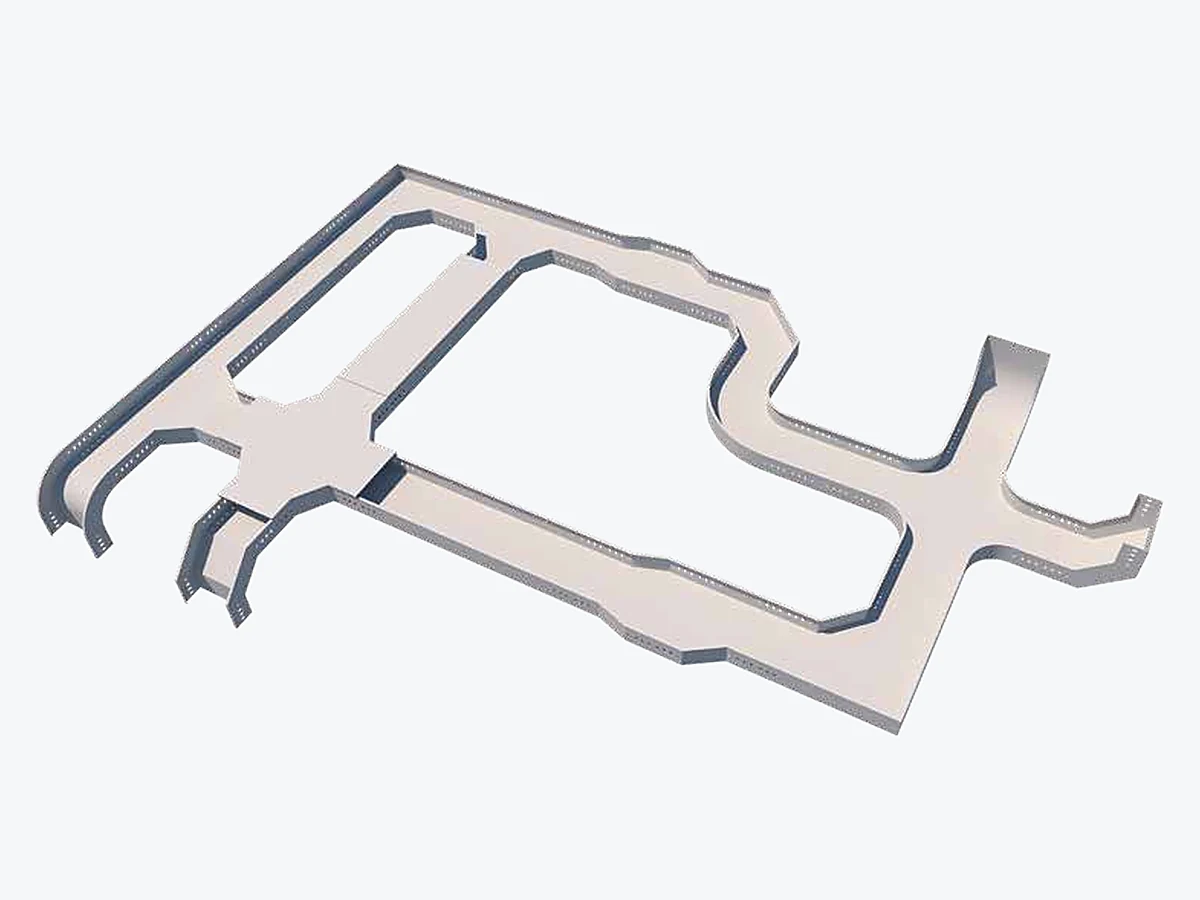

Straight trunking plus matched bends, tees, end caps and covers, so the whole route is enclosed and finished from one system.
Wrapped and palletised for export
Bundled, wrapped and strapped onto pallets with shipping marks, the way we already ship overseas orders.
Sourcing & Trust
Where this tray comes from, in plain terms
We would rather tell you exactly what we are than dress it up. Here is the honest picture of who makes the tray and what we can document.
Our own factory in China
Made on our own line by a manufacturer and exporter under one owner. Buyers are welcome to visit and audit the plant before ordering.
Ask us to arrange a plant tour.
Export-experienced packing
Nested and crated on wooden pallets with international shipping marks, the way we already ship overseas orders.
Real export packing photos shown on this site.
Documentation on request
Test certificates and compliance documents are confirmed per market and per order. Tell us your destination and standard and we share what applies.
Where we say "confirmed per order", it means we set it with you before production. We do not list certifications or figures we cannot back up.
Downloads
Catalogue, datasheet and guides
Everything your buying team needs to spec and quote the tray. Ask us for anything not yet posted and we will send it the same day.
Product Catalogue (PDF)
The full Cable Tray Master range, sizes and finishes.
Request a copyOEM / Custom
Made to your project: width, height, thickness and finish to spec, with OEM marking and packaging. Buyers are welcome to audit the plant.
01
Building and MEP contractors
Protected, tidy routing for exposed wall runs, plant rooms and risers, with easy cover-off access for changes.
02
Panel and switchroom builders
A clean, enclosed duct for switchrooms and control panels, powder-coated to match where wanted.
03
Distributors and wholesalers
A core protected-routing line, factory-direct, in the common widths and finishes buyers ask for.
Frequently Asked Questions
When should I use trunking instead of a tray?
Is the cover removable?
What finishes are available?
What widths and heights do you make?
Do you supply bends and fittings?
Can we visit the factory?
Get a quote for CTM-TK
Tell us the width, finish, quantity and destination. We reply within one business day with the section, price and lead time.
