Perforated Cable Tray (Hot-Dip Galvanized) (CTM-PT) is a perforated cable tray from Cable Tray Master. Key specs: 100–1000 width range (mm), 25–200 side height (mm), HDG hot-dip galvanized finish.
Perforated Cable Tray · Factory-Direct
The everyday cable tray, made in our own plant
A hot-dip galvanized, slotted steel cable tray in widths from 100 to 1000 mm, with the full family of fittings and export-ready packing. You order direct from the factory, and you are welcome to audit it.
- Made in our own factory (manufacturer + exporter)
- Export packing, crated and labelled for the port
- Widths 100 – 1000 mm, made to your section
We reply within one business day with spec, price and lead time.
Why Cable Tray Master
A manufacturer you can buy direct from, and audit
Cable Tray Master is a cable tray manufacturer and exporter under one owner. We make the tray on our own line in China and ship it with our own export team, so the price is factory-direct, the specification is made to order, and buyers are welcome to visit and audit the plant.
Manufacturer, not middleman
The tray is cut, punched, folded and finished in our own factory. You specify the width, height, thickness and finish, and we produce to it, rather than picking from whatever stock a trader happens to hold. Because we own the plant, the pricing is factory-direct and buyers are welcome to visit and audit before ordering.
Built for the environment
Hot-dip galvanized for outdoor, rooftop and corrosive sites, where the finish protects even the cut edges and punched slots. Pre-galvanized, powder-coated and stainless finishes are available for dry indoor runs and aggressive environments, so the tray matches where it will actually be installed.
A complete system
Straight tray plus the full family of bends, tees, crosses, reducers, covers, splice plates and supports, supplied together so the run arrives complete. One matched system means fewer missing parts on site and a cleaner install.
What the CTM-PT is, and who it is for
The perforated cable tray is the everyday workhorse of a cable-support system. It is a U-shaped steel channel with slots punched along the floor and walls: the tray carries power and control cables the full length of a run, while the slots let heat escape and give you a ready fixing point for cable ties. It is the tray most projects start with, because it balances load, ventilation and cost better than any other profile.
This version is hot-dip galvanized, meaning the finished tray is dipped in molten zinc after it is cut and folded, so the whole surface, including the punched edges, is protected. That makes it the right choice for outdoor runs, rooftops, tunnels, water-treatment plants and other corrosive or wet environments where a lighter finish would not last. For dry indoor plant rooms, the same tray is available pre-galvanized or powder-coated at a lower cost.
We make the tray in our own factory, so a buyer can specify width, height, sheet thickness and finish and have it produced to that spec rather than picked from whatever a trader has in stock. It ships with the full family of fittings, bends, tees, reducers, covers and splice plates, so the run arrives complete. Because we are a manufacturer and exporter under one roof, buyers are welcome to visit and audit the plant before they order.
Specifications
Technical specifications
Confirmed per order. We send the full spec sheet, including sizes, thickness and finish, before you buy.
| Type | Perforated (slotted) cable tray |
|---|---|
| Profile | U-channel with returned lip |
| Width | 100 – 1000 mm |
| Height (side) | 25 – 200 mm |
| Sheet Thickness | 0.8 – 2.0 mm (confirmed per order) |
| Standard Length | 2 m / 3 m (confirmed per order) |
| Material | Cold-rolled / galvanized steel |
| Surface Finish | Hot-dip galvanized (HDG) |
| Certification | Available on request |
| Origin | Made in China (our own factory) |
| MOQ | Confirm on inquiry |
Dimensions, thickness, finish and any certification are confirmed per order before production. We do not list certifications or load ratings we cannot back up.
Built to do the job on site
Ventilation slots
Slots along the floor and walls let heat escape from bundled cables and give a fixing point for cable ties, so the run stays cool and tidy.
Hot-dip galvanized
Dipped in molten zinc after fabrication, so the whole surface including the cut edges is protected, for outdoor and corrosive sites.
Made in our own plant
Cut, punched and folded in-house, so width, height, thickness and finish are built to your spec, not picked from stock.
Complete fitting range
Bends, tees, crosses, reducers, covers and splice plates are supplied with the tray, so the run arrives ready to assemble.
Widths 100 – 1000 mm
A full width range from small control-cable trays to wide power runs, with side heights from 25 to 200 mm.
Export-ready packing
Nested and crated on wooden pallets with international shipping marks, the way we already ship overseas orders.
How it works
Why perforated, not solid
A solid-bottom tray keeps out dust but traps heat around the cables. A perforated tray punches slots along the floor and sides so warm air can move and the cables run cooler, which matters for power cables that heat up under load. The slots also double as tie points, so the installer can lash the cables down every so often without extra hardware. For most indoor and outdoor runs, that ventilation is why perforated is the default choice.
Why hot-dip galvanized
Steel rusts. Galvanizing coats it in zinc, which corrodes first and protects the steel underneath. Pre-galvanized steel is coated as flat sheet before it is cut, so the cut edges are left bare. Hot-dip galvanizing dips the finished tray in molten zinc after it is cut and folded, so even the punched slots and sheared edges are coated. That is why HDG is specified for outdoor, rooftop, tunnel and wet or corrosive environments, where bare edges would be the first to rust.
How the system fits together
A cable-support run is not just straight tray. It turns corners, branches, changes width and needs covering in exposed areas. The perforated tray ships with a matched family of fittings, horizontal and vertical bends, tees, crosses, reducers, covers and splice plates, so the whole route is built from one system. Splice plates and bolts join lengths; supports hang it from the structure. We supply the complete set so nothing is missing on site.
Where it fits on the job
Power and control cable runs
Laid along walls, ceilings and cable racks, the tray carries bundled power and control cables the length of a plant or building, with the slots keeping the bundle ventilated.

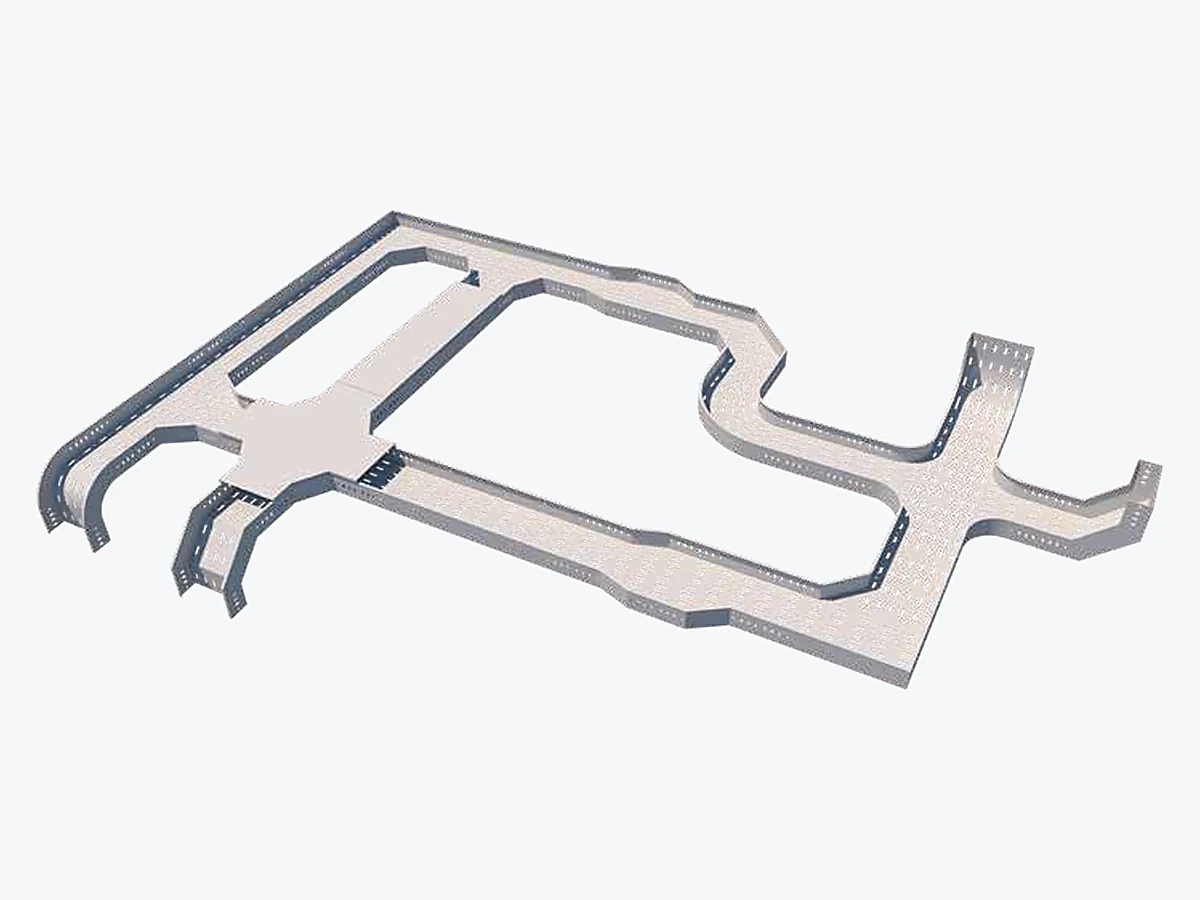

A complete run, not just straight tray
Straight lengths plus a matched family of bends, tees, crosses and reducers, so corners, branches and width changes are all built from one system.
Crated and labelled for export
Trays are nested and packed into plywood export crates on wooden pallets, labelled with description, size, net and gross weight and origin, ready for the port.
How it compares
Each option has its place. Here is where this one fits, in plain terms, so you can pick the right tray for the run.
| Perforated tray | Solid-bottom tray | Cable ladder | |
|---|---|---|---|
| Ventilation | Slots release heat | None, traps heat | Fully open |
| Best for | General power & control | Dusty / small cables | Long spans, heavy power |
| Cable tie points | Slots along tray | Limited | Rungs |
| Weight of tray | Moderate | Heavier | Light for the span |
| Typical finish | HDG / pre-galv | HDG / pre-galv | HDG / pre-galv |
General guidance for selecting a tray type, not a load benchmark. Confirm load and span with us.
Sourcing & Trust
Where this tray comes from, in plain terms
We would rather tell you exactly what we are than dress it up. Here is the honest picture of who makes the tray and what we can document.
Our own factory in China
We are a manufacturer and exporter under one owner, so the tray you buy is made on our own line and shipped by our own export team. Buyers are welcome to visit and audit the plant before ordering.
Factory visit and workshop footage available; ask us to arrange a plant tour.
Export-experienced packing
Trays are nested and crated on wooden pallets with international shipping marks and a full description-and-weight label, the way we already ship overseas orders.
Real export packing photos shown on this site.
Finish and material to spec
Hot-dip galvanized, pre-galvanized, powder-coated or stainless, in the width, height and thickness your project needs. We produce to a confirmed section rather than a rough approximation.
Documentation on request
Test certificates and compliance documents are confirmed per market and per order. Tell us your destination country and the standard your project requires, and we will share what applies.
Every claim on this page is something we can show or honestly describe. Where we say "on request" or "confirmed per order", it means we set it with you before production, not that it is hidden. We do not list certifications, load ratings or company milestones we cannot back up.
Downloads
Catalogue, datasheet and guides
Everything your buying team needs to spec and quote the tray. Ask us for anything not yet posted and we will send it the same day.
Perforated Tray Datasheet
Sizes, finishes and section for the perforated cable tray.
Request a copyProduct Catalogue (PDF)
The full Cable Tray Master range, sizes and finishes.
Request a copyFittings & Accessories List
Bends, tees, reducers, covers, splice plates and supports.
Request a copyInstalling the run
-
01
Set out and support the run
Mark the route and fix the tray supports (brackets, hangers or trapeze) to the structure at the spacing the load and span require. Confirm support spacing with us for your load case.
-
02
Lay and splice the tray
Set the straight lengths onto the supports and join them end to end with splice plates and bolts, keeping the run level and aligned.
-
03
Add bends, tees and reducers
At corners, branches and width changes, drop in the matching fittings and bolt them to the straight lengths so the route is continuous.
-
04
Lay cables, tie and cover
Run the cables into the tray, tie them to the slots at intervals, and fit covers over exposed or outdoor sections where required.
OEM / Custom
Made to your project: width, height, thickness and finish to spec, with OEM marking and packaging. Buyers are welcome to audit the plant.
Width, height & thickness
Made to the cross-section your project needs, from 100 to 1000 mm wide, within our production range.
Surface finish
Hot-dip galvanized, pre-galvanized, powder-coated or stainless, chosen for the environment.
Fittings & accessories
Bends, tees, reducers, covers, splice plates and supports supplied to match the straight tray.
OEM / private label
Your marking and packaging on a factory-direct product; buyers are welcome to audit the plant.
01
Contractors and installers
A complete perforated tray system, straights plus every fitting, so the run arrives ready to build without chasing missing parts.
02
Electrical wholesalers and distributors
A core catalogue line, factory-direct, that you can stock in the common widths and finishes your market asks for.
03
EPC and project buyers
Made-to-spec width, height, thickness and finish for a project bill of materials, produced and audited at our own plant.
Frequently Asked Questions
What widths and heights do you make?
What surface finishes are available?
What is the difference between hot-dip and pre-galvanized?
Do you supply the fittings as well as the straight tray?
Are the trays certified?
You are described as a manufacturer and exporter, can we visit the factory?
How do you pack the trays for export?
What is the minimum order and lead time?
Get a quote for CTM-PT
Tell us the width, finish, quantity and destination. We reply within one business day with the section, price and lead time.
